Featured Vibro Screens

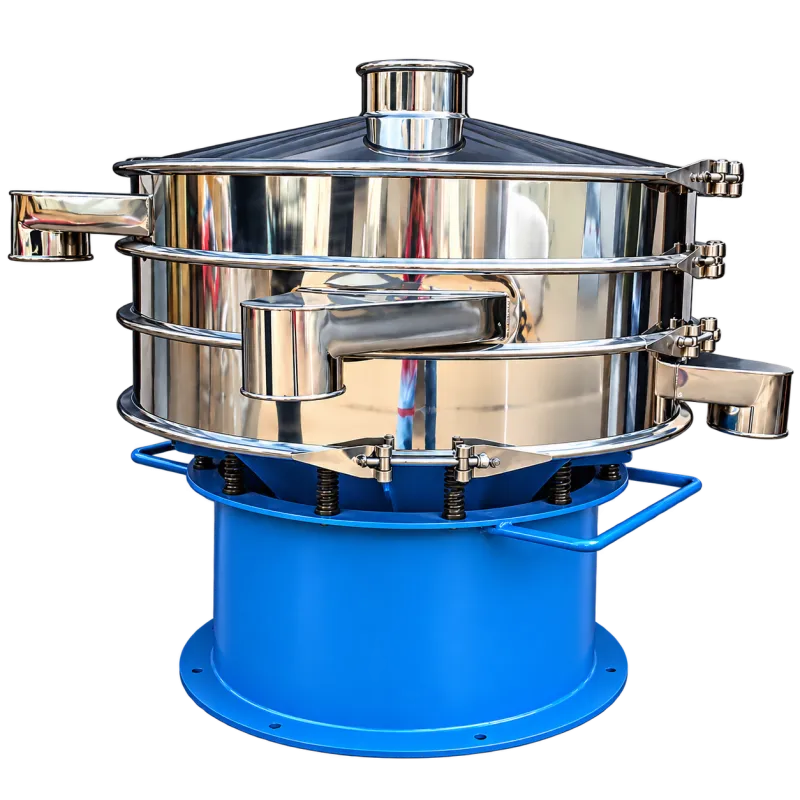

Circular Vibro Screen
Gyratory screening for powders, granules and slurries – 600 to 1800 mm
- Capacity (indicative) 30 – 400 kg/h
- Number of decks 1, 2
Enlarge image
Featured Gyro Screens
Single Deck Gyro Vibration Machine
Precision Screening for Superior Material Separation.
The Single Deck Gyro Vibration Machine is an efficient screening solution designed to separate, classify, and grade materials with high accuracy. Its controlled gyratory motion ensures uniform screening, consistent output, and reliable performance across various industrial applications.
- Number of decks
- 1, 2, 3, 4, 5
- Screening mode
- Dry, Wet
- Size
- 24" – 72" (600 – 1800 mm)
- Motor
- Vibratory motor, 0.5 – 7.5 HP
Overview
The Single Deck Gyro Vibration Machine is designed for precise and efficient screening of powders, granules, and other bulk materials. Using a controlled gyratory vibration mechanism, the machine promotes uniform material distribution across the screening surface, helping achieve accurate separation and consistent product quality.
Its single-deck configuration offers a simple and effective screening solution for applications requiring one-stage particle separation. Built for dependable industrial operation, the machine supports improved material handling, reduced manual intervention, and efficient production processes. It is suitable for industries where product purity, particle-size consistency, and operational reliability are essential.
Features
-
Single-Deck Design: Efficient screening through a single screening surface.
-
Precise Separation: Supports accurate particle-size classification.
-
Uniform Material Distribution: Promotes consistent screening across the deck.
-
Controlled Gyratory Motion: Facilitates effective material movement and separation.
-
Robust Construction: Designed for demanding industrial environments.
-
Easy Operation: Simple operating concept for convenient use.
-
Low Maintenance Design: Helps simplify routine maintenance and servicing.
-
Versatile Applications: Suitable for screening a wide range of powders and granules.
Specifications
Models
| Model | Screen diameter (mm) | Screen size (inch) | Motor power – single deck (HP) | Motor power – double deck (HP) | Overall height – single deck (mm) | Overall height – double deck (mm) |
|---|---|---|---|---|---|---|
| SGS 600SGS-600 | 600 | 24 | 0.5 | 1.0 | 770 | 870 |
| SGS 750SGS-750 | 750 | 30 | 1 | 1.5 | 800 | 900 |
| SGS 900SGS-900 | 900 | 36 | 1.5 | 2.0 | 925 | 1050 |
| SGS 1200SGS-1200 | 1200 | 48 | 2 | 2.0 / 3.0 | 1100 | 1250 |
| SGS 1500SGS-1500 | 1500 | 60 | 3 | 3.0 / 5.0 | 1200 | 1340 |
| SGS 1800SGS-1800 | 1800 | 72 | 5 | 5.0 / 7.5 | 1375 | 1525 |
Swipe the table sideways to see every column.
General
- Machine type
- Gyro screen
- Number of decks
- 1, 2, 3, 4, 5
- Screening mode
- Dry, Wet
Dimensions and motor ratings are indicative and may change with design improvements. Capacity depends on the material, mesh size and feed rate.
Advantages
-
Improved Product Quality: Helps maintain consistent particle-size distribution.
-
Efficient Screening: Supports effective separation in a single stage.
-
Reduced Material Waste: Helps minimize unwanted particle contamination when properly configured.
-
Enhanced Productivity: Supports smooth and consistent screening operations.
-
Lower Manual Intervention: Reduces the need for manual material classification.
-
Space-Efficient Installation: Single-deck construction offers a compact screening arrangement.
-
Operational Reliability: Designed for consistent performance in industrial processes.
-
Cost-Effective Processing: Helps optimize screening operations and material handling.
Applications
-
Pharmaceutical Industry: Screening pharmaceutical powders and granules.
-
Food Processing Industry: Sieving flour, sugar, spices, starch, and other food ingredients.
-
Chemical Industry: Classification of chemical powders, granules, and compounds.
-
Fertilizer Industry: Screening fertilizer granules and powdered materials.
-
Mineral Processing: Separation and grading of suitable mineral materials.
-
Ceramic Industry: Screening ceramic powders and raw materials.
-
Plastic Industry: Classification of plastic granules and polymer powders.
-
Paints and Pigments: Screening pigments, additives, and fine powders.
-
Metal Powder Processing: Screening suitable metallic powders according to particle size.
-
General Manufacturing: Removing oversized particles and improving material consistency.
See it running
Related machines
All Gyro Screens Featured
Vibro Sieves

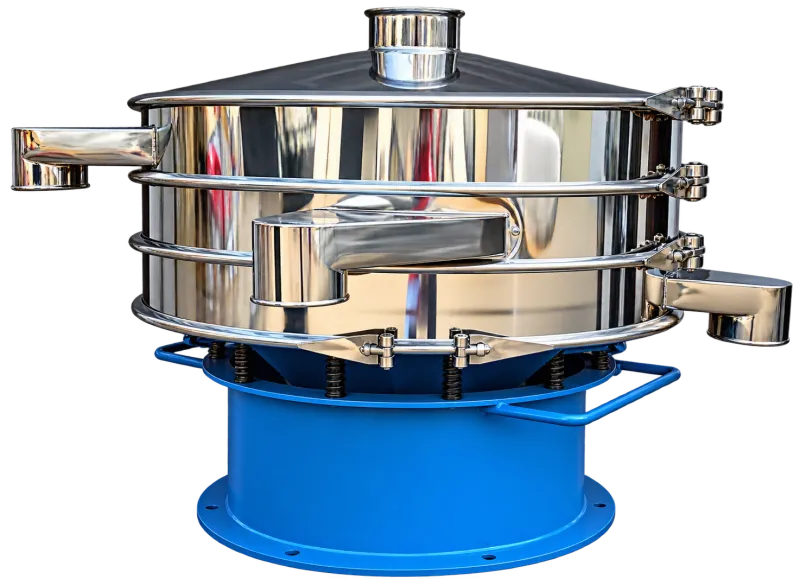

Vibrating Sieve
High-frequency sieving for fine, dense mineral products
- Number of decks 1, 2
- Speed 1500 – 7200 RPM
Featured Vibro Sifters

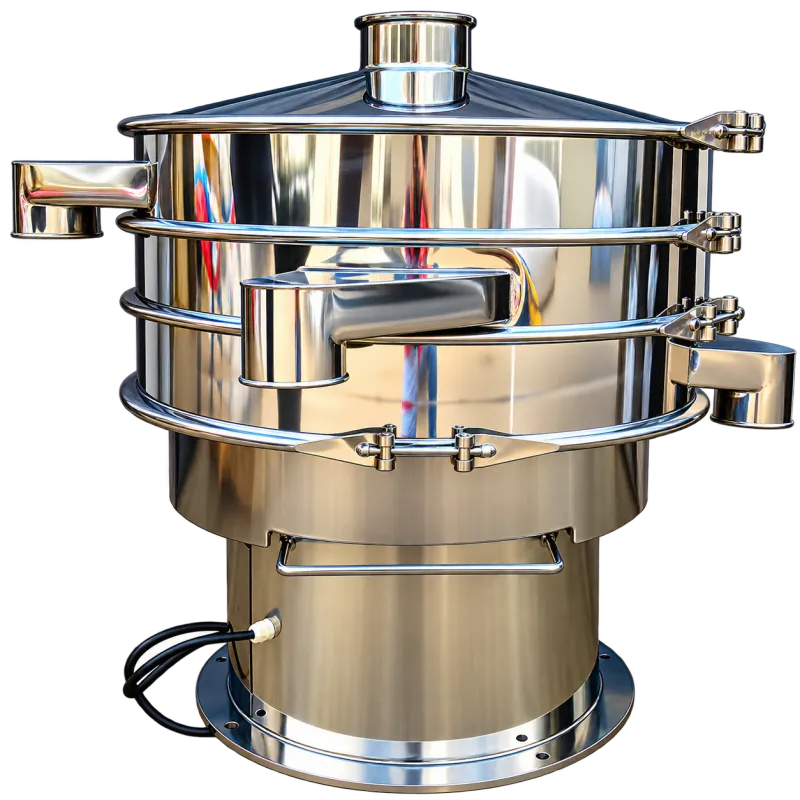

Vibro Sifter
Accurate, cleanable sifting for pharma, food and chemicals – 600 to 900 mm
- Number of decks 1, 2
Talk to an engineer
Not sure which model fits?
Share the material, bulk density, feed rate and the cut you need. We size the deck, mesh and motor for your duty and send a GA drawing with the quote.
